How to Design a 4 to 16 Decoder using 3 to 8 Decoder 4 to 16 Decoder Circuit4 To 16 Decoder Logic Diagram - The CD54HC4514, CD74HC4514, and CD74HC4515 are high-speed silicon gate devices consisting of a 4-bit strobed latch and a 4-to-16 line decoder. The selected output is enabled by a low on the enable input (E\). A high on E\ inhibits selection of any output.. DM74LS154 4-Line to 16-Line Decoder/Demultiplexer DM74LS154 4-Line to 16-Line Decoder/Demultiplexer General Description Each of these 4-line-to-16-line decoders utilizes TTL cir-cuitry to decode four binary-coded inputs into one of six-teen mutually exclusive outputs when both the strobe Connection Diagram Logic Diagram. 8-bit priority encoder truth table 4x2 encoder encoder connection implement a function using 2 to 4 decoders 4 to 2 priority encoder truth table 1 to 16 multiplexer line decoders priority encoder truth table 4 to 1 encoder. Wire Schematics. Home › Logic Diagram Of 4 To 2 Encoder. Logic Diagram Of 4 To 2 Encoder 2 2 To 4 Decoder 2 To 4.
Draw the logic diagram of a 2 to 4 line decoder using a) NOR gates only b) NAND gates only. Include an enable input. be descriptive please. Best answer. 100 % (3 ratings) A 2 to 4 decoder is taking a 2 bit binary input and based unpon the input turns on only one of the 4. The dual 2-input/ 4 output decoder consists of , the monolithic chip to provide the inverted Sum or Carry output. o TRUTH TABLE vcc = Pin 4 GND = , Inputs MC 4038 2 4 5 11 12 14 13 1 Ol 8 Output Vcc = pin 16 Gnd = Pin 8 TRUTH TABLE (POSITIVE LOGIC , allows the decoder to be expanded for larger decoder systems.. Designing 2-to-4 Decoder What is a Decoder. In digital electronic a decoder is the logic device that converts N-bit coded input signals to 2 N output signals. For each input combination only one output is in active “High” level..
Decoder block diagram. are implemented in an energy-efﬁcient version of RSFQ logic (ERSFQ)  which is the most developed and proven energy- KIRICHENKO et al.: ERSFQ 4-TO-16 DECODER. Logic Diagram TL/F/5122–2 4. 5. MM54HC154/MM74HC154 4-to-16 Line Decoder Physical Dimensions inches (millimeters) Order Number MM54HC154J or MM74HC154J See NS Package J24F Order Number MM74HC154N See NS Package N24C LIFE SUPPORT POLICY NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT. Binary Decoder is another combinational logic circuit constructed from individual logic gates and is the exact opposite to that of an Encoder. The name “Decoder” means to translate or decode coded information from one format into another, A 4-to-16 Binary Decoder Configuration.
In case the 'n' bit coded information has unused bit combinations, the decoder may have less than 2n outputs. 2-to-4 decoder, 3-to-8 decoder or 4-to-16 decoder are other examples. The input to a decoder is parallel binary number and it is used to detect the presence of a. Aug 04, 2015 · showing all the major. decoder or 4-to-16 decoder. Fig. 1 Block Fig.2 shows the circuit diagram of the decoder. In this 4 Simulation Result of Schematic of 2 bit Decoder. Fig. Read Kleitz, Chapter 8, skipping Sections 8-2 and 8-4. Homework #8 and A specific integrated circuit decoder is the 74154, a 4-to-16 decoder. It includes two.. HOMEW ORK 4 Solution ICS 151 – Digital Logic Design Spring 2004 1. Decoder/Multiplexer combining W e need four 3-to-8 decoder for the last stage and one 2-to-4 decoder for selecting each of them at the first stage: b. W e use four 8-to-1 in the first stage and another one to select between the So W e need 16 2 input AND gates and 12.
block diagram for the 4 to 16 decoder and a logic gate with the minimum number from ESE 218 at Stony Brook University. The block diagram of 4 to 16 decoder using 3 to 8 decoders is shown in the following figure. The parallel inputs A 2 , A 1 & A 0 are applied to each 3 to 8 decoder. The complement of input, A3 is connected to Enable, E of lower 3 to 8 decoder in order to get the outputs, Y 7 to Y 0 ..
digital logic - How to build a 4 to 16 decoder using ONLY TWO 2 to 4 ... digital logic - How to build a 4 to 16 decoder using ONLY TWO 2 to 4 decoders? - Electrical Engineering Stack Exchange

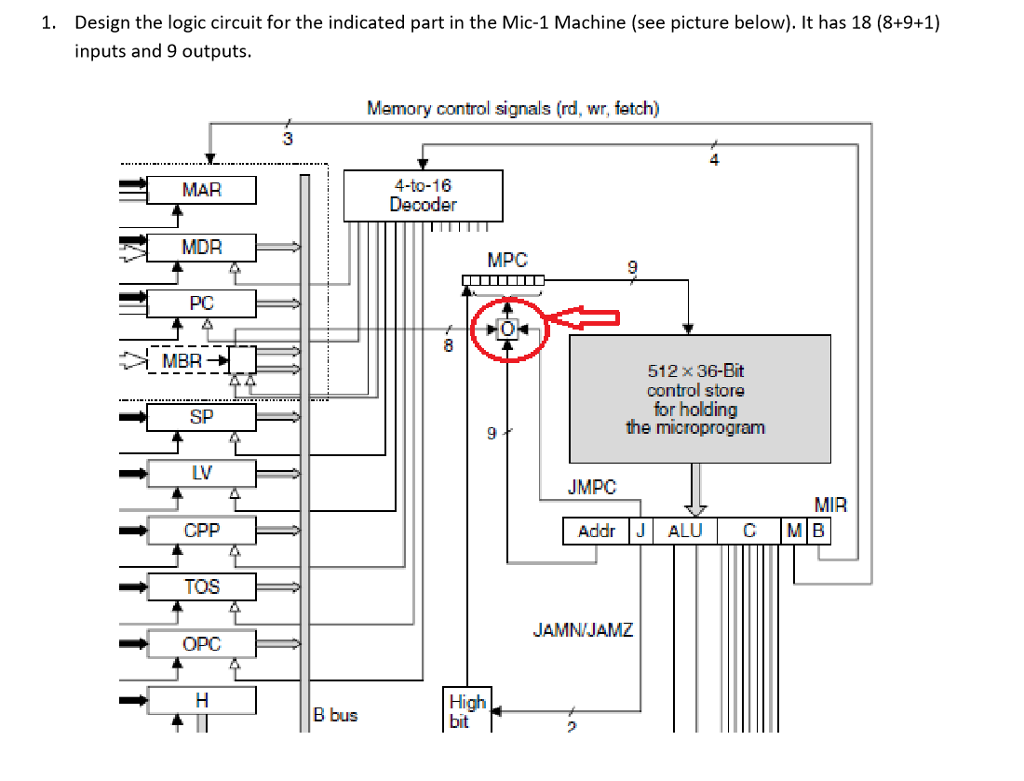

1. Design The Logic Circuit For The Indicated Part... | Chegg.com Design the logic circuit for the indicated part in the Mic-1 Machine
74 series digital circuit 74154 74L154 etc 4 to 16 line decoder or ... 74 series digital circuit 74154 74L154 etc 4 to 16 line decoder or demultiplexer
Digital logic | Binary Decoder - GeeksforGeeks The 2-to-4 line binary decoder depicted above consists of an array of four AND gates. The 2 binary inputs labelled A and B are decoded into one of 4 outputs ...

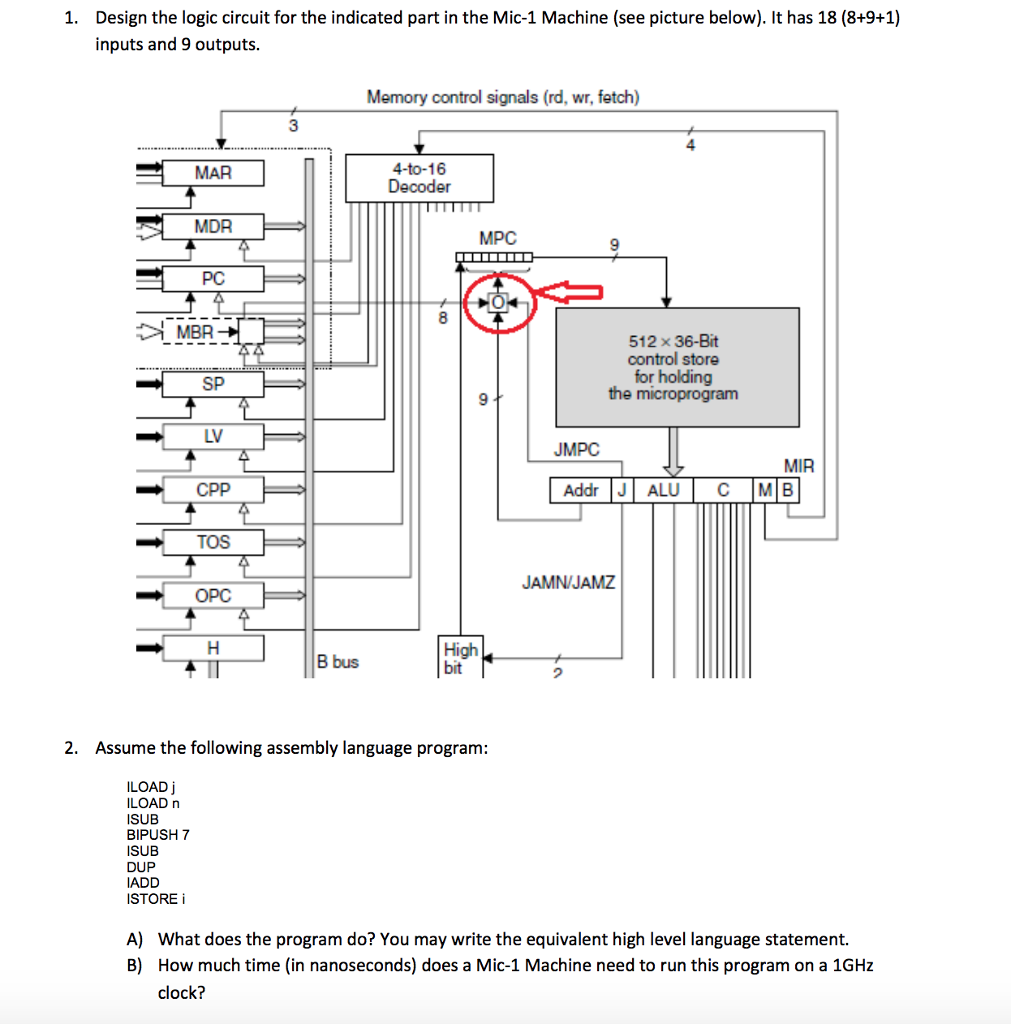

Design The Logic Circuit For The Indicated Part In... | Chegg.com Design the logic circuit for the indicated part in the Mic-1 Machine (see
